SUPER STRENGTH® UNIVERSAL JOINTS

Premium driveline components from MOOG®, the Official Steering and Suspension of NASCAR®

MOOG-Super-Strength-Universal-Joints-product-background

Specifically designed for higher torque and horsepower

MOOG-Super-Strength-Universal-Joints-product-detail

Our strongest u-joint

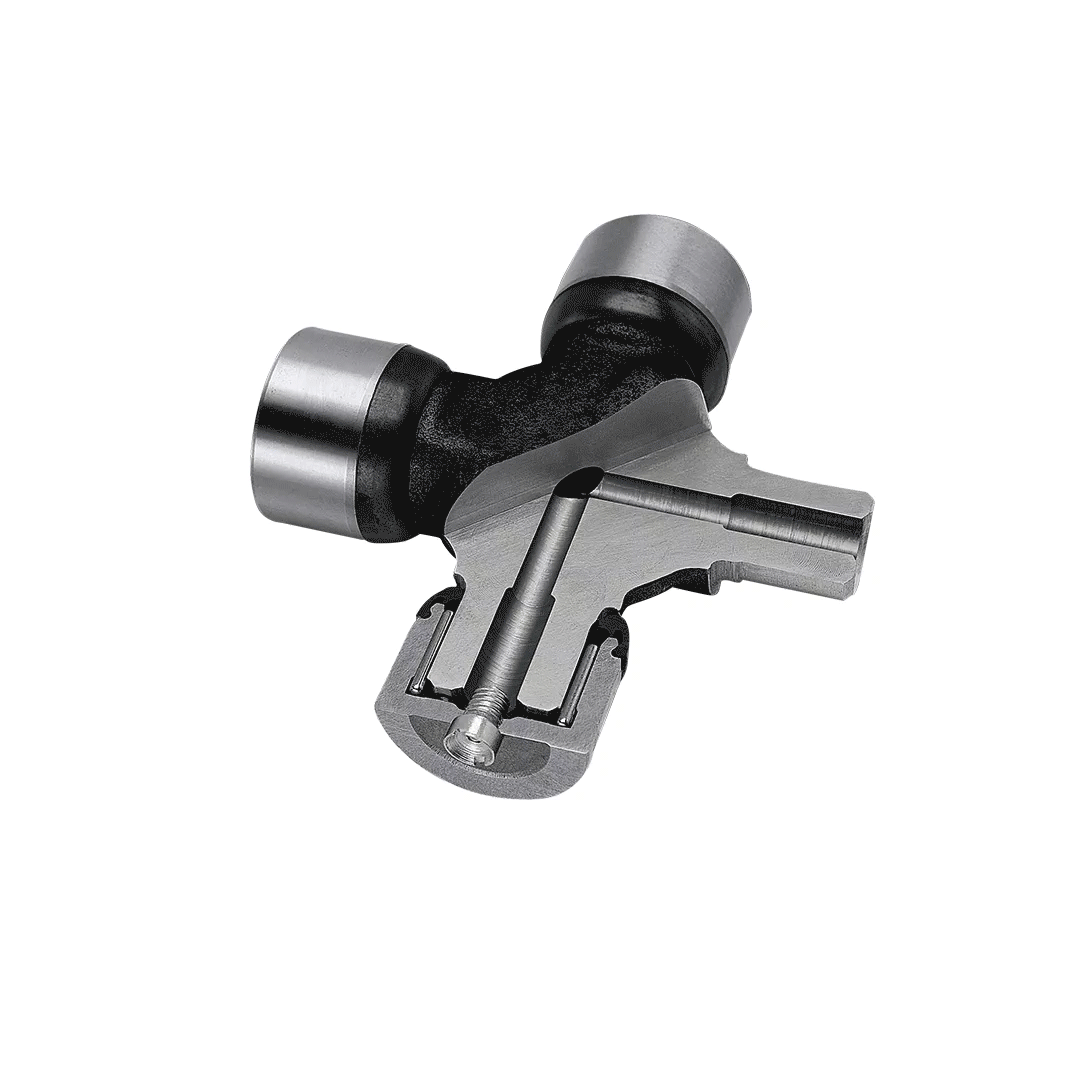

MOOG® Super Strength® u-joints feature a super-strong alloy steel cross and abrasion-resistant nitrile seals for optimal grease retention. These rugged u-joints are available in greaseable and non-greaseable versions.

1. Superior seal
Abrasion-resistant nitrile seals provide optimal grease retention and excellent protection from under-vehicle contaminants

2. MICRO SHIELD™ coating
Exclusive coating protects against rust and corrosion

MOOG-Super-Strength-Universal-Joints-product-detail

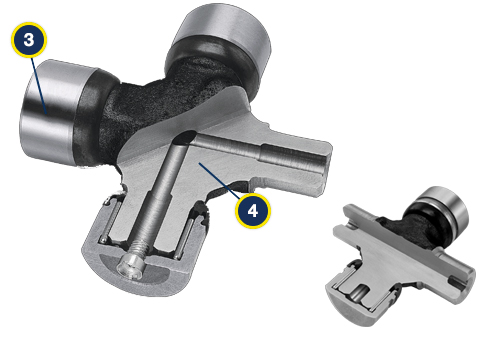

3. Case-hardened bearing cups
Bearing cups are cold formed and case-hardened for better wear and strength, then precision ground for optimal performance

4. Super-strong alloy steel cross
Forged and case-hardened for maximum life and durability

MOOG-Super-Strength-Universal-Joints-product-detail

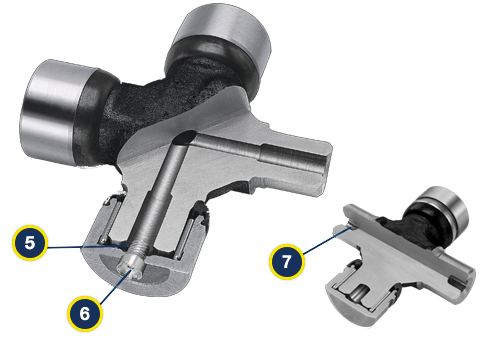

5. Radial design
Allows 360° lubricant distribution to all bearing surfaces

6. Greaseable design
Greaseable versions feature a flush lube fitting in the bearing cup for easy access. Cross strength is increased by eliminating unnecessary grease channels

7. Non-greaseable design
Non-greaseable versions have grease reservoirs in the end of each journal to assure proper lubrication. They increase cross strength by eliminating all grease channels within the cross body

Quick-Look Benefits

Innovative

Incorporate numerous features for maximizing life, preventing failure

Durable

Forged and heat-treated

Safer

Meet or exceed OE standards

Easier

Engineered for aftermarket service environment
