Quick to Market
Steering & Suspension Parts

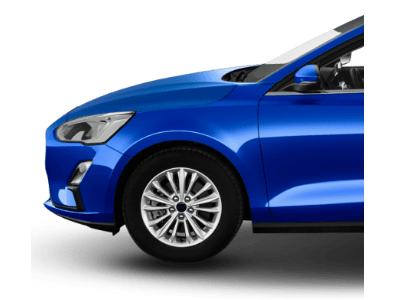

Ford Focus IV

Find on e-Catalogue

MOOG® HAS YOU COVERED

MOOG is pleased to extend its market coverage advantage through the introduction of MOOG Steering & Suspension part numbers for the Ford Focus IV (HN, HM, HP), 01/18-. MOOG parts help professional installers restore safe, durable, original equipment-style ride and handling on a vast majority of passenger vehicles operated in Europe and surrounding regions. MOOG delivers more than just a world-class, durable ride. We closely monitor the vehicle population to ensure the right MOOG products are available when and where each vehicle reaches prime ride control repair age. In addition, every MOOG parts is offered with the brand's full, 3-year warranty protection*. This industry-leading 3-year warranty highlights the enhanced safety benefits and exceptional durability that come when installers and their customers choose MOOG products.

*The 3-year warranty Terms and conditions apply.

FD-WP-17577 / FD-WP-17579

Track Control Arm

Position: Front Axle Left
Applications:

FD-WP-17577: Focus IV (HN, HM, HP), 01/18-
1.5 120PS Petrol, 1.5 & 2.0 Diesel
OE numbers: 2194099, 2203138, JX613A424AEA, JX613A424AEB

FD-WP-17579: Focus IV (HN, HM, HP), 01/18-
1.0 & 1.5 Petrol
OE numbers: 2216267, JX613A424CEB

View Part Details

FD-WP-17578 / FD-WP-17580

Track Control Arm

Position: Front Axle Right
Applications:

FD-WP-17578: Focus IV (HN, HM, HP), 01/18-
1.5 120PS Petrol, 1.5 & 2.0 Diesel
OE numbers: 2194097, 2203137, JX613A423AEA, JX613A423AEB

FD-WP-17580: Focus IV (HN, HM, HP), 01/18-
1.0 & 1.5 Petrol
OE numbers: 2216265, JX613A423CEB

View Part Details

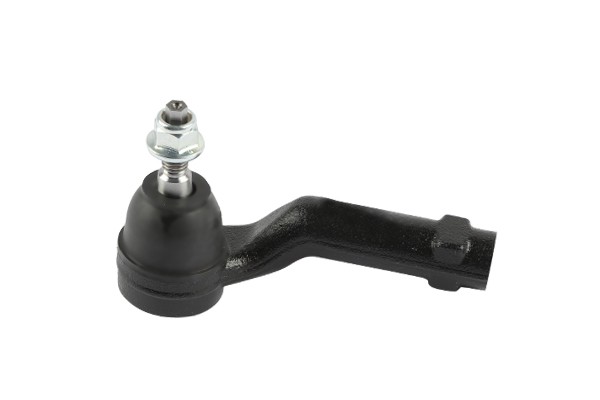

FD-ES-17573

Tie Rod End

Position: Front Axle Left
Applications:

Focus IV (HN, HM, HP), 01/18-

OE numbers: 2194040, JX6C3C437AA, 2418584, JX6C3C437AB

View Part Details

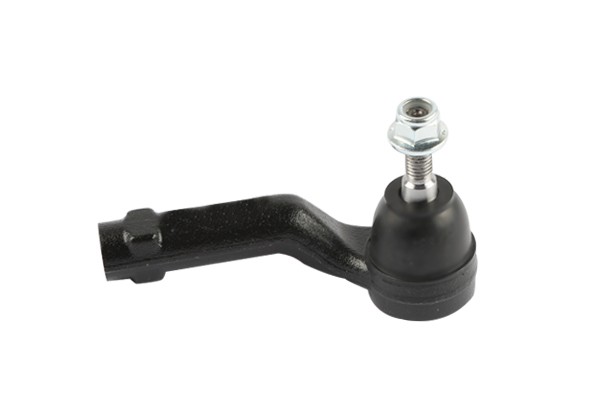

FD-ES-17574

Tie Rod End

Position: Front Axle Right
Applications:

Focus IV (HN, HM, HP), 01/18-

OE numbers: 2194042, JX6C3C367AA, 2416297, 2494049, JX6C3C367AB, JX6C3C367AC

View Part Details

Full Product Overview for Ford Focus IV, 01/18-

#	Product	Position	Axle	OE Numbers
FD-AX-17575	Axial rod	L/R	Front	2194056, JX6C3L519AA, 2475900
FD-ES-17573	Tie rod end	Left	Front	2194040, JX6C3C437AA, 2418584, JX6C3C437AB
FD-ES-17574	Tie rod end	Right	Front	2194042, JX6C3C367AA, 2416297, 2494049, JX6C3C367AB, JX6C3C367AC
FD-LS-15239	Link stabiliser	L/R	Front	5182780, DG9C3B438ANC
FD-BJ-17583	Ball joint	L/R	Front	part of 2194099/2194097, part of 2216267/2216265
FD-WP-17577	Track control arm	Left	Front	2194099, 2203138, JX613A424AEA, JX613A424AEB
FD-WP-17578	Track control arm	Right	Front	2194097, 2203137, JX613A423AEA, JX613A423AEB
FD-WP-17579	Track control arm	Left	Front	2216267, JX613A424CEB
FD-WP-17580	Track control arm	Right	Front	2216265, JX613A423CEB
FD-SB-17576	Silentbloc	L/R	Front	2216263, JX613A262CEA
FD-SB-17582	Silentbloc	L/R	Front	2216261, JX613A262AEA
FD-SB-17581	Silentbloc	L/R	Front	part of 2194099/2194097, part of 2216267/2216265
FD-LS-17590	Link stabiliser	L/R	Rear	2200512, JX615C486BEA
FD-LS-17591	Link stabiliser	L/R	Rear	2099504, 2173832, JX615C486AKB, JX615C486AKC
FD-TC-17587	Track control arm	L/R	Rear	2200527, JX615K743AEA, 2428955
FD-TC-17588	Track control arm	L/R	Rear	2216285, JX615500AEA
FD-SB-17592	Silentbloc	L/R	Rear	part of 2200522 / 2200524 / 2281101 / 2274948
FD-SB-17595	Silentbloc	L/R	Rear	part of 2200522 / 2200524 / 2281101 / 2274948
FD-SB-18146	Silentbloc	L/R	Rear	part of 2200527, part of JX615K743AEA, part of 2428955
