How to Adjust Camber and Caster on Non-Adjustable Vehicles

Getting Camber and Caster in Specification

Many late model vehicles have limited adjustment of camber and caster. Due to close tolerances in the manufacture of new vehicles, limited adjustment is needed to align the wheels on a new vehicle. But as steering and suspension systems wear additional adjustment may be necessary to maintain optimal wheel alignment. Proper wheel alignment is necessary to promote long tire life, vehicle stability and steering wheel return.

Camber and caster alignment angles must be in specification for proper tire life, steering wheel return, vehicle stability and improved suspension component life. However, component wear and damage from incidents such as hitting a pothole can cause camber and caster to come out of specification.

Diagnosing the Problem

Upon determining that a vehicle’s camber and/or caster is out of specification, follow the manufacturer’s service procedures to adjust the settings if applicable (some vehicles do not have provisions for such adjustment). If ideal alignment cannot be achieved, check the steering and suspension for worn or damaged parts or aftermarket parts which may not match OE specification. Replace any suspect parts with new parts and repeat the alignment procedure. If the vehicle is still out of alignment, then an adjustable ball joint can be installed to improve the vehicle’s alignment.

MOOG Adjustable Ball Joints

Remove and replace the non-adjustable upper ball joint with a MOOG Problem Solver adjustable ball joint. In many cases, the ball joints are pressed into the steering knuckle or control arm and are difficult to remove and install, especially with age. Using a press tool is the proper method to remove and install the ball joint. Avoid using a hammer to complete the job; it can damage the steering knuckle and the new ball joint.

file

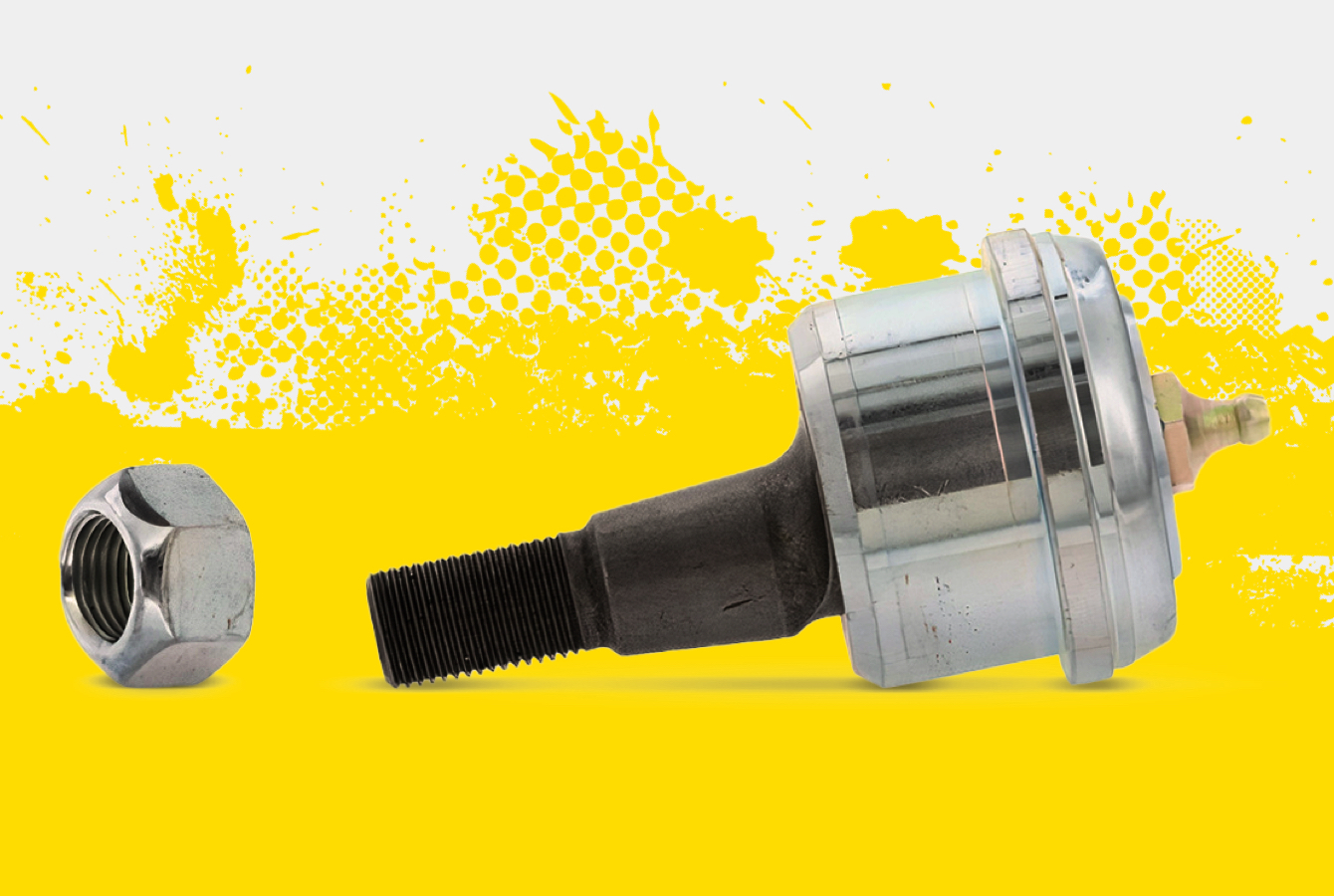

Installing MOOG adjustable ball joints adds camber and caster adjustment to vehicles that have limited adjustment from the factory. Camber and caster adjustability will increase from -1º to +1º or more depending on the application. If needed, they can also be readjusted for future adjustments.

Part Number Application Position Adjustment Range
K7448 2006-2008 Ram 1500, 2003-2022 2500/3500 Front Upper -1° to +1°
K7469 2005-2022 Chrysler 300; 2008-2022 Dodge Challenger, 2006-2022 Charger, 2005-2008 Magnum Front Lower Rearward -1.5° to +1.5°
K90492 2004-2014 Acura TSX, 2001-2003 CL, 1990-2001 Integra, 1991-1995 Legend, 1996-2004 RL, 1996-2014 Acura TL; 2010-2011 Honda Accord Crosstour, 2012-2015 Crosstour, 1998-2012 Accord, 1992- 2000 Civic, 1993-1997 Civic del Sol, 1997-2001 CR-V, 1988-1991 CRX, 1997-2001 Prelude Front Upper -1° to +1°
K100071 2006-2010 Jeep Commander, 2005-2010 Grand Cherokee Front Upper -1° to +1°
K100107 2011-2015 Dodge Durango; 2011-2015 Jeep Grand Cherokee Front Upper -1° to +1°
K100108 2005-2006 Chevrolet Avalanche 1500, 2002-2006 Avalanche 2500, 2001-2007 Silverado 1500 HD, 1999-2004 Silverado 2500, 2001-2010 Silverado 2500 HD, 2001-2007 Silverado 3500, 2007-2010 Silverado 3500 HD, 2000-2013 Suburban 2500; 2001-2007 GMC Sierra 1500 HD, 1999-2004 Sierra 2500, 2001-2010 Sierra 2500 HD, 2001-2007 Sierra 3500, 2007-2010 Sierra 3500 HD, 2000-2013 Yukon XL 2500; 2003-2009 Hummer H2 Front Upper -3° to +3°
K100115 2006-2021 Ram 1500 Front Upper -3° to +3°
K100116 2002-2006 Cadillac Escalade; 2002-2006 Chevrolet Avalanche 1500, 2003-2014 Express 1500, 2003-2005 Express 2500, 1999-2007 Silverado 1500, 2000-2006 Suburban 1500, 2000-2006 Tahoe; 2003- 2015 GMC Savana 1500, 2003-2005 Savana 2500, 1999-2007 Sierra 1500, 2000-2006 Yukon, 2000-2006 Yukon XL 1500 Front Upper -3° to +3°
K100140 2008-2018 Ram 4500, 2008-2018 5500; 2008 Sterling Truck Bullet 45, 2008 Bullet 55 Front Upper -1° to +1°
K100199 2014-2020 Acura MDX; 2017-2022 Honda Ridgeline, 2019-2022 Passport, 2016-2022 Pilot Rear Upper -3° to +3°
K100316 2006-2021 Ram 1500 Front Upper -2.25° to +2.25°
K100317 2005-2006 Chevrolet Avalanche 1500, 2002-2006 Avalanche 2500, 2001-2007 Silverado 1500 HD, 1999-2004 Silverado 2500, 2001-2010 Silverado 2500 HD, 2001-2007 Silverado 3500, 2007-2010 Silverado 3500 HD, 2000-2013 Suburban 2500; 2001-2007 GMC Sierra 1500 HD, 1999-2004 Sierra 2500, 2001-2010 Sierra 2500 HD, 2001-2007 Sierra 3500, 2007-2010 Sierra 3500 HD, 2000-2013 Yukon XL 2500; 2003-2009 Hummer H2 Front Upper -3° to +3°
K100398 2015-2022 Ford Transit 150, 2015-2022 Transit 250, 2015-2022 Transit 350, 2015-2022 Transit 350 HD Front Lower -0.5° to + 1°
K500013 2006-20012 Ford Fusion; 2007-2012 Lincoln MKZ, 2006 Zephyr; 2006- 2011 Mercury Milan, 2003-2008 Mazda 6 Front Upper -1° to +1°
K500240 2006-2007 Lexus GS430, 2016-2021 IS300, 2016-2017 IS200t, 2006- 2015 IS250, 2006-2021 IS350, 2007-2021 GS450h, 2007-2011 GS350, 2008-2011 GS460, 2008-2014 IS F, 2006 GS300 Front Upper -1.5° to +1.5°

Learn more about premium steering and suspension parts, find your car part, or find where to buy your auto part today.


The content in this article is for informational purposes only. You should consult with a certified technician or mechanic if you have questions relating to any of the topics covered herein. Tenneco will not be liable for any loss or damage caused by your reliance on any content.
