Selecting the Right Tie Rod End for Ford Super Duty Trucks

Share

Tie Rod End Identification

Vehicles Affected:

  • Ford F-350 (2008-2016)
  • Ford F-450 (2008-2016)
  • Ford F-550 (2008-2016)

Ford Super Duty trucks equipped with the Wide Track front axle utilize a tie rod end with a larger diameter than non-Wide Track axle equipped trucks. It is important to identify which axle a Super Duty truck is equipped with because the diameter of the tie rod end threads differ between axles and are not interchangeable.

A wide track front axle is standard on the F-450 and optional on DRW F-350s with the tow package on 2011-2016 models. Look for Regular Production Option (RPO) code 67W on the truck’s option sticker in model years 2008-2009, as this also indicates the truck is equipped with the Wide Track front axle.

F-350s from model years 2011-2016 equipped with the Wide Track axle are generally distinguishable by having large front fender flares, similar to what comes standard on the F-450. The RPO code of 535 also designates the tow package which includes the Wide Track axle on the F-350.

Inspection Procedure

Before ordering MOOG replacement tie rod ends, determine the correct tie rod by measuring the diameter of the threaded portion of the tie rod.

Without Wide Track:

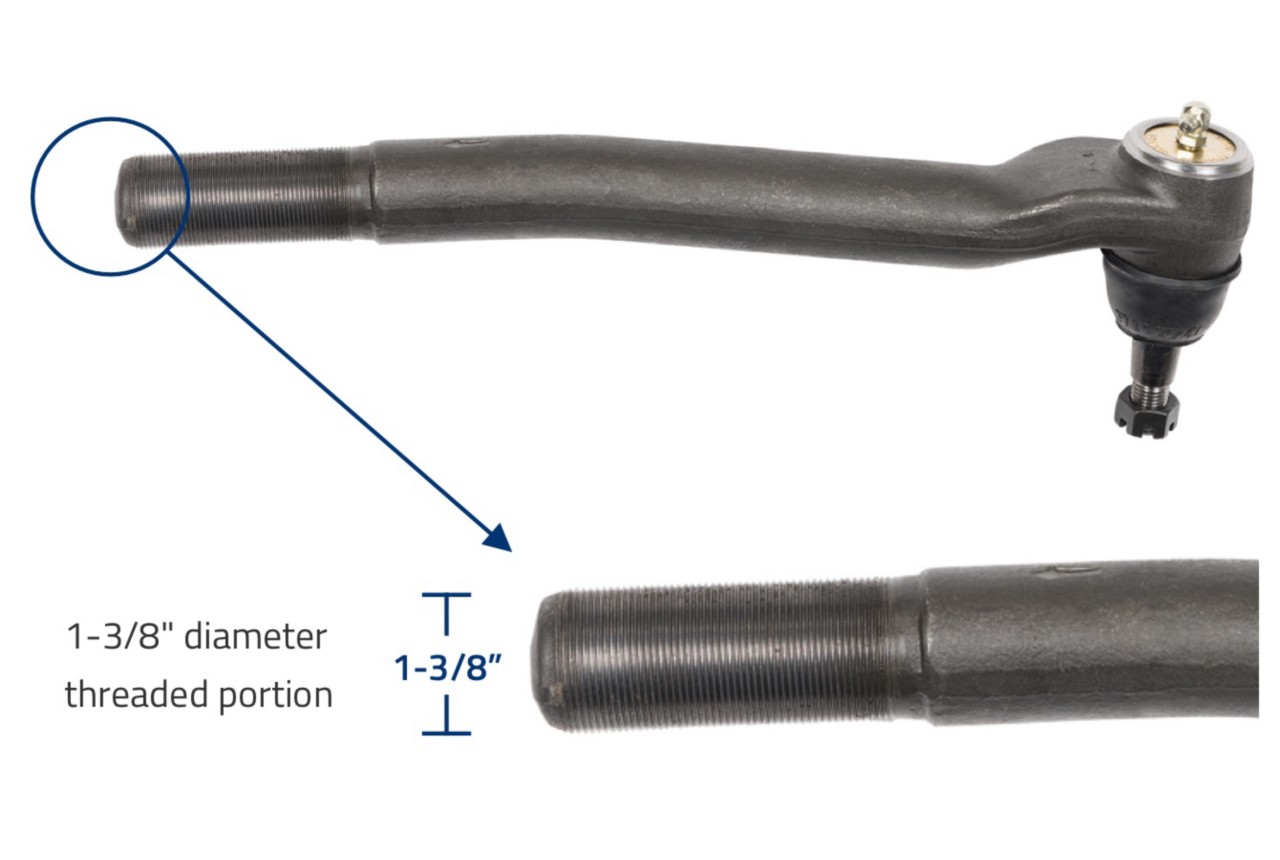

MOOG ES80754 (Left Outer) and ES80755 (Right Outer) outer tie rod ends have 1-3/8" diameter threads and fit trucks without the Wide Track axle:

  • Ford F-350 (2005-2016)
  • Ford F-450 (2005-2010)
  • Ford F-550 (2005-2010)
moog-es80754-tie-rod-end

With Wide Track:

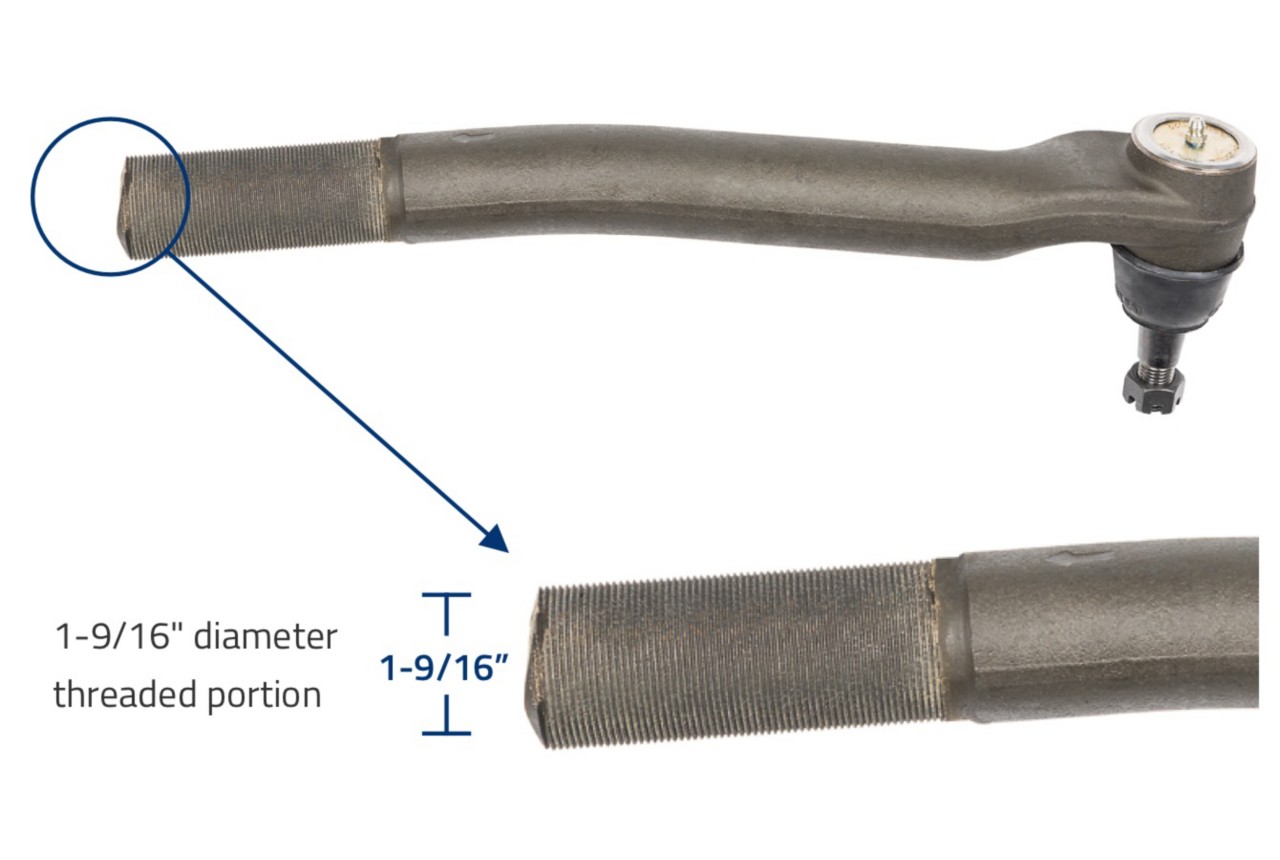

MOOG ES800880 (Right Outer) and ES800881 (Left Outer) outer tie rod ends have 1-9/16" diameter threads and fit trucks equipped with the Wide Track axle:

  • Ford F-350 (2008-2016)
  • Ford F-450 (2011-2016)
  • Ford F-550 (2011-2016)
moog-es800880-tie-rod-end

MOOG Tie Rod Ends

Backed by superior materials and rigorous testing, MOOG tie rod ends deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

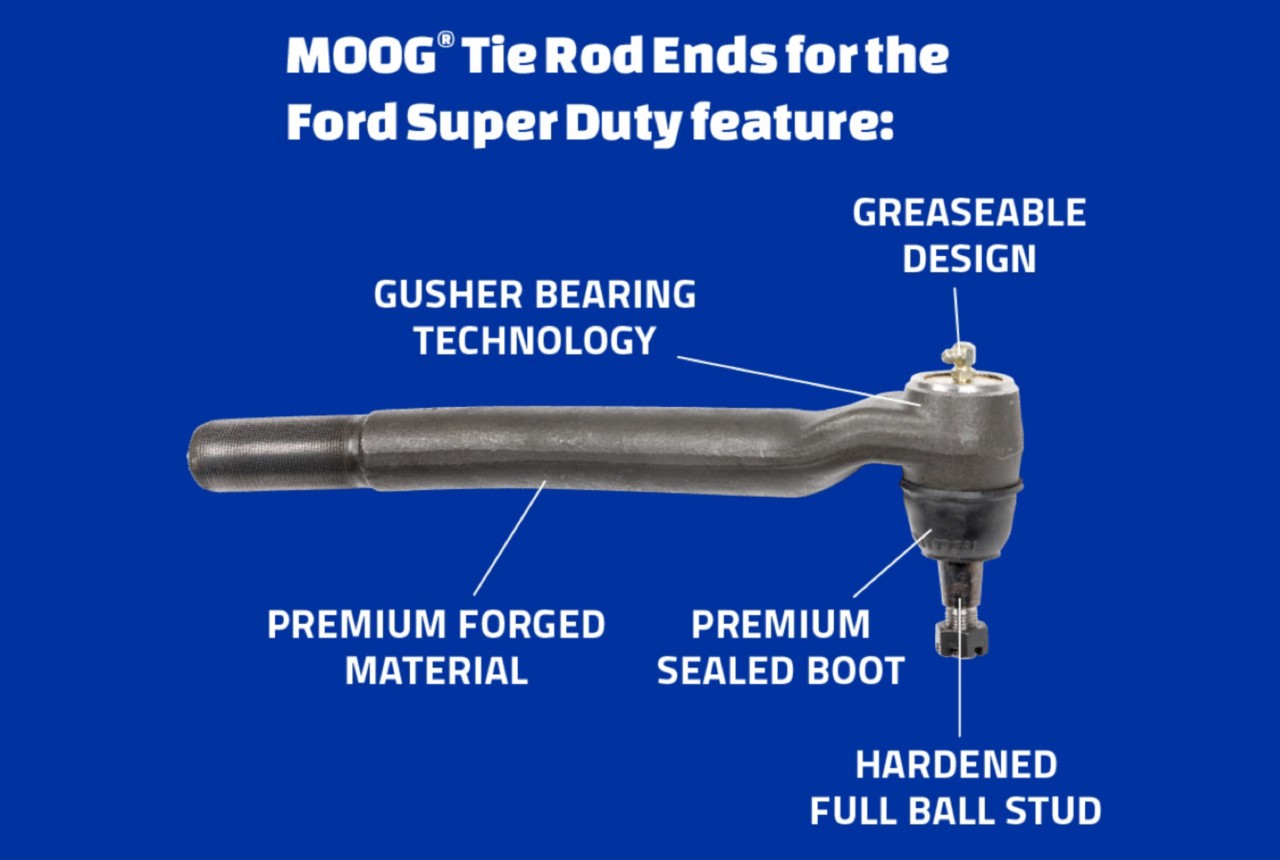

moog-tie-rod-ends-features-on-ford-super-duty-trucks
  • GREASABLE SOCKET
    Reduces corrosion and wear by allowing new lubricant to flush contaminants
  • PROBLEM SOLVER® GUSHER BEARING
    Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life 
  • STRONG AND DURABLE
    Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
  • EASY TO INSTALL
    Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box
  • KEEPS DIRT AND WATER OUT
    Dust boot shields socket components from wear-causing contaminants

Learn more about premium steering and suspension parts, find your car part, or find where to buy your auto part today.

The content contained in this article is for informational purposes only and should not be used in lieu of seeking professional advice from a certified technician or mechanic. We encourage you to consult with a certified technician or mechanic if you have specific questions or concerns relating to any of the topics covered herein. Under no circumstances will we be liable for any loss or damage caused by your reliance on any content.
